High Speed Wire Cutting Stripping Machine

Product Categories: Cutting and Stripping

Model: XC-220A

Brand: ZHAOZHUANG

Online Inquiry
  • Description
  • Specification
  • Application

High Speed Wire Cutting Stripping Machine



  1. XC-220A is specially designed for small and thin electric wires, it is an updated model based on XC-220. The machine is able to process 4 wires simultaneously, thus its working efficiency is 4 times than ordinary types.

  2. Conduit jumping function allow longer wire end stripping length.

  3. This stripper has automatic waste wire blowing function so that the blades can be cleaned automatically and keep its high accuracy.

  4. Extraordinary program function, one machine can handle various kinds of processing modes, including longer wire mode, short wire mode, middle strip mode, jacket wire mode, etc. The machine has 99 sets of memory function to store different parameter settings in its program, which the operator can retrieve in seconds.

  5. Conveyor belt is suggested while cutting length is above 0.5 meter, it guaranteed the processed wires to be collected straight and orderliness, moreover, it is time saving.


High Speed Wire Cutting Stripping Machine



Available Wire Size: 0.1-6mm(AWG#32-AWG#10)

Max. Conduit Diameter: single wire Φ 6mm

Dimension: 420*400*280mm

Weight: 32Kg

Power: AC220V 50Hz/60Hz 430W

Cutting length: 0.1-99999.9 mm

Stripping length: Head 0-30mm, End 0-30mm

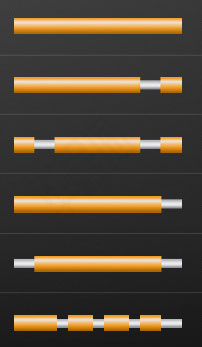

Wire Type: Flat Cable/Long wire/short wire/multi-stage stripping/multi-layer stripping

Speed: 5000-11000 pcs/h

Wire Material: PVC, VSF, Teflon, Glass Fiber, etc
