Automatic Wire Cutting Stripping and Bending Machine
Product Categories: Stripping and Bending
Model: XC-880Z-6
Brand: ZHAOZHUANG
Online InquiryAutomatic Wire Cutting Stripping and Bending Machine

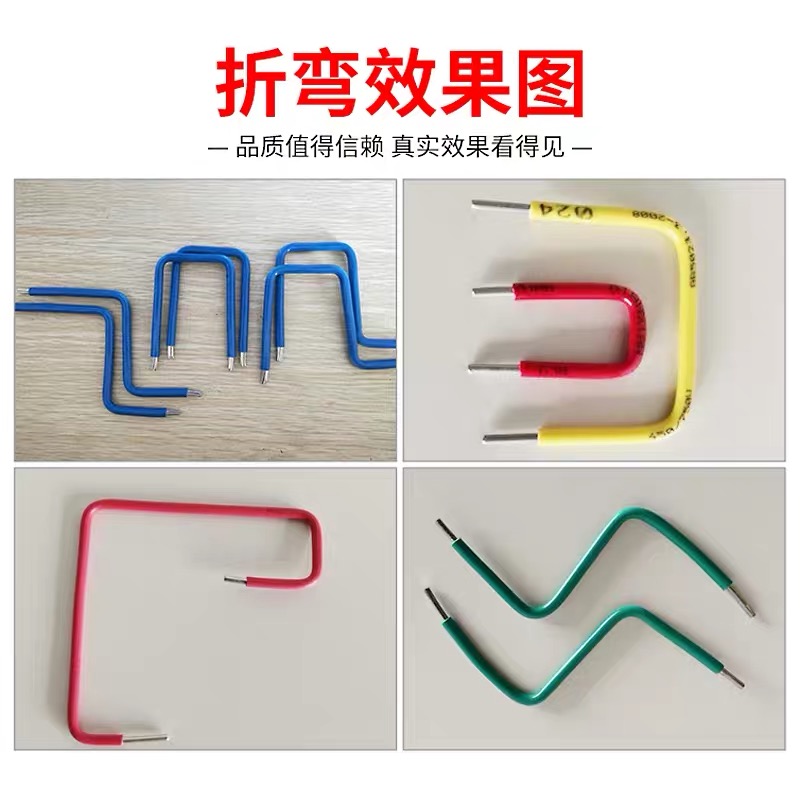

Jumper wire of electric control cabinet, bend wire of electric meter box, forward and reverse jumper wire of contactor, etc
|
Product |
Automatic wire cutting stripping and bending machine |
|
Dimension |
420*300*345mm |
|
Weight |
31KG |
|
Display |
7 inch touch screen + PLC |
|
Power supply |
AC175V-250≤50/60HZ |
|
Power |
200-300W |
|
Cutting length |
0.1mm-99999.9mm |
|
Stripping length |
0.1-100mm |
|
Bending times |
8 times |
|
Bending length |
End bend more than 30mm, middle bend more than 30mm |
|
Bending mode |
Clockwise, counterclockwise, bending degree adjustable, 30 degrees, 45 degrees, 60 degrees, 90 degrees. The same wire can fold both positive and negative bends at the same time |
|
Cutting wire size |
0.1-6mm2 |
|
Cutting torlerance |
Less than 0.002xLmm ※L |
|
Conduit diameter |
3-5mm |
|
Drive mode |
2 wheel drive |
|
Capability |
500-1000pcs/h |
