Automatic Wire Cutting Stripping and Twisting Machine

Product Categories: Stripping and Twisting

Model: XC-220T

Brand: ZHAOZHUANG

Online Inquiry
  • Description
  • Specification
  • Application

Automatic Wire Cutting Stripping and Twisting Machine



1. Electronicproducts tend to be light, thin, short and small, so the required wires tend tobe thin, short and high precision.

2. Thismachine can give full play to its greatest strengths. The short line within50MM, which used to be considered difficult to process, is not responsible now.

3. Why isit difficult? At the same time, the speed of feeding, feeding, retracting,re-peeling and peeling can be set separately, and the isolation line can alsobe forced.

4. Strippingto the end of 99MM, eliminating the previous isolation line can not becompletely stripped and injured to the heart line.


Automatic Wire Cutting Stripping and Twisting Machine



Available Wire Size: AWG16#~AWG32# (Depends on wire material)

Max. Conduit Diameter: Φ 6mm

Power: AC220V 50Hz/60Hz

Cutting length: 0.1-99999.9 mm

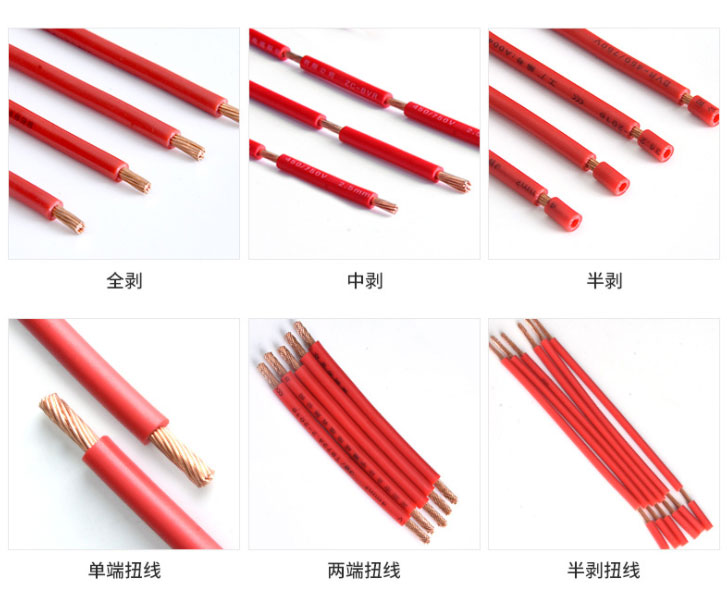

Stripping length: Head 0-30mm, End 0-100mm (longer than 30mm should   half strip)

Speed: 13000 pcs/h (length: 100mm, both sides strip 3mm)

Wire Material: PVC, VSF, Teflon, Glass Fiber, etc



Dimension: 510*510*415mm

Weight: 32Kg

Twisting parts:

Dimensions: 400*235*205mm

Weight: 6Kg
