Automatic Double Sides Waterproof Inserting and Crimping Mac

Products Categories

Product Categories: Automatic Crimp Machine

Model:

Brand: ZHAOZHUANG

Online Inquiry

Description
Specification
Application

The machine is driven by Mitsubishi servo motor and ball screw, and uses the motion control system to make the positions of wire feeding, peeling, terminal striking and double wearing waterproof bolt very accurate, the action connection between them is smooth, the mechanical control is simple and convenient, all of which are operated by the touch screen, and the data adjustment can change the peeling line length, tangent depth and terminal striking position, so as to save time for the dispatcher, The automatic detection function of the machine can also effectively control the occurrence of defective products, so that they can be found and handled in time.

The automatic double headed waterproof bolting terminal machine is a processing machine that brings you safety, high efficiency and precision., It can be customized according to requirements.

characteristic:

1. All terminal machines adopt servo crimping

2. The mold has strong universality and can adapt to Japanese, European and other clamping molds

3. The vibrator feeding system made in Japan is adopted

4. Equipped with gravity free synchronous pay off rack

5. Pressure monitoring system can be equipped

6. It can be equipped with CCD image system

7. It can be equipped with upper software system

8. Equipped with safety protection cover, accidents can be avoided when the machine is running

Available Wire Size：0.2-2.5mm2
Cutting length：35-9999mm（设定1mm单位）
Cutting tolerance：within ±0.1（0.1+0.005*L）mm，L=length
Stripping length：0-15mm
Pressure Capacity：2.5T
Crimping braking mode：Servo Crimping
Language：Chinese/English
Power supply：AC 220V±10%, 50/60Hz
Air pressure：0.5Mpa 150(ANR)/min
Available wire type：AV,AVS,AVSS,CAVUS,KVKIV,UL

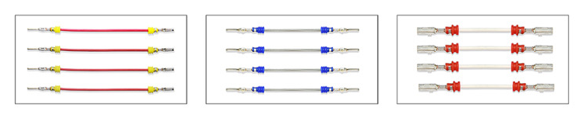

Waterproof inserting mode：One side/both sides
Dimensions：1200*1100*2300mm
Weight：525kg
