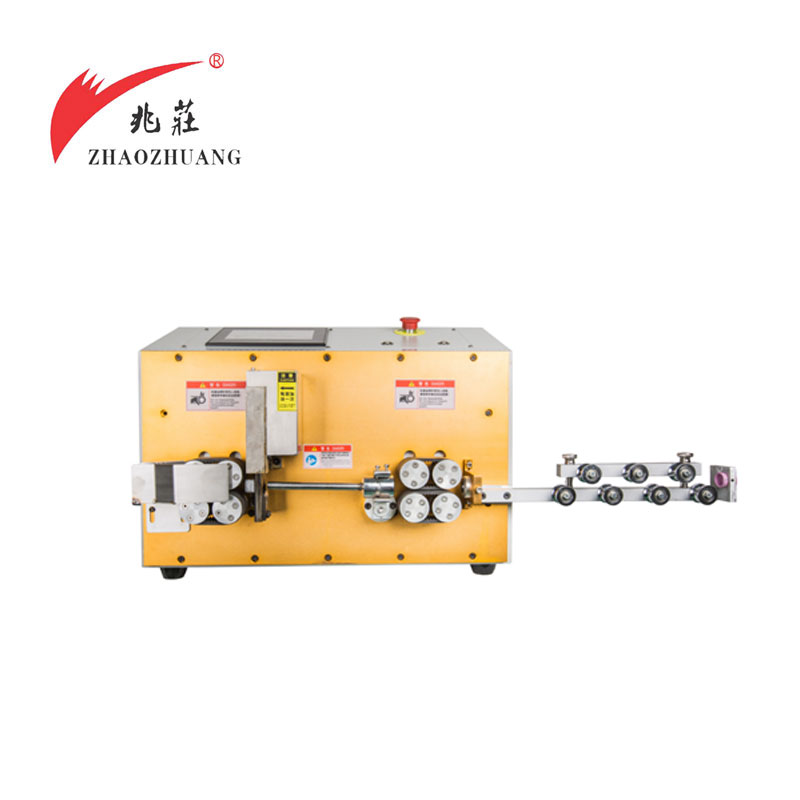

Automatic Large Cable Cutting Stripping Machine
Product Categories: Cutting and Stripping
Model: XC-880XL
Brand: ZHAOZHUANG
Online InquiryAutomatic Large Cable Cutting Stripping Machine
This large cable wire cutting stripping machine is driven by 8 wheels at the same time, using servo motor to ensure more efficient operation! Faster! On the basis of the original wire and cable stripper, increase the power by 2 times. The output is 2-3 times of the ordinary stripping machine! Save a lot of labor! The automatic computer wire stripper developed by our company is a new generation of wire harness processing equipment with complete intellectual property rights, which adopts high-speed microprocessor and combines with advanced motion control technology. The display part uses 240 * 128 graphic dot LCD with PLC touch screen, and the parameter input is 5 × The product is suitable for processing large power cable, power cable, sheath wire, soft and hard wire. The processed wire harness has the same length, beautiful appearance and the best stripping effect.
| Brand | ZHAOZHUANG | Middle stripping | 14 |
| Type | XC-880XL | Drive method | 8 wheels drive at the same time, each step forward 0.1mm |
| Size | 630*560*465mm | Cutting length | 10mm |
| Weight | 120kg | Stripping length | 9999mm |
| Power supply | 220v | Both end stripping length | ≤0.2% |
| Power | 450w | Cutting torlerance | Head: 50 mm, End: 100mm |
| Wire size | 6-50mm2 | Conduit diameter | 4--15mm（standard: 8--15mm) |
| Speed | depends on wire | Blade material | tungsten steel/white steel |
| Type of wire | BV/BVR, sheath wire etc. | Coaxial cable/ Sheath wire | Up to three layers of outer jacket |
