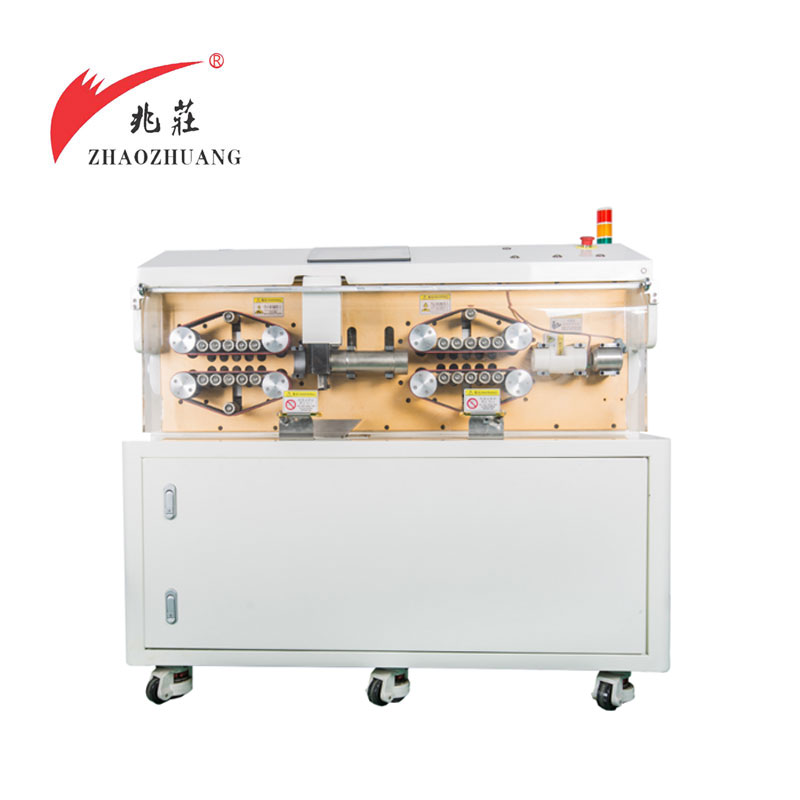

Heavy-Duty Large Cable Cutting and Stripping Machine
Product Categories: Cutting and Stripping
Model: XC-400F
Brand: ZHAOZHUANG
Online InquiryHeavy-Duty Large Cable Cutting and Stripping Machine
1. The heavy-duty large cable cutting and stripping machine is able to process upto 300mm2 cable, it is perfect for processing the high voltage power cable, electric car charging cable, etc.
2. This machine is driven by servo motors to insure powerful feeding and high level of cutting and stripping accuracy. It also utilizesbelt feeding design to avoid pressing marks on the cable.
3. The color touch screen provides a simple and enjoyable operation experience
4. With 4 movable rollers beside the machine feet, the machine can be moved easily and installed firmly on the ground. A protection cover is added to prevent accidental injury, the machine will stop automatically after turn on the detection function in the program.
5. XC-400F can work independenty or to be integrated in wire processing line due to multiple interfaces are reserved in the program.
Heavy-Duty Large Cable Cutting and Stripping Machine
| Brand | ZHAOZHUANG | Mid stripping | 14 (can be customized） |
| Type | XC-400F | Drive method | 30 wheels drive at the same time, silent servo motor, each step forward 0.1mm |
| Size | 1320*840*1080mm | Cutting length | 1mm--99999mm |
| Weight | 350kg | Stripping length | 1mm--35mm（normal） |
| Power supply | 220V 50/60Hz | Both end stripping length | front stripping length 50mm/ end stripping length 120mm |
| Power | 1200W | Cutting torlerance | ±(0.5+L*0.2%) (L= cutting length) |
| Stripping range | Min. 6mm2/Depends on wires | Conduit diameter | 4--45--55mm |
| Speed | 1-10 depends on wires | Blade material | tungsten steel/white steel |
| Type of wire |
BV/BVR wire Sheath wire etc. Automatic adjustment of wire core, different specifications of cable without tool replacement. |
New energy line / charging pile / charging gun | Up to three layers of outer jacket |
